PipeConx PCX Series 56 Plastic or Cast Iron to Plastic or Cast Iron Coupling

Pipe Conx

Description

PipeConx Universal Pipe Connectors allow you to connect any size pipe, quickly and easily. Their time saving, fully tested design gives you professional results in minutes using only a slotted screwdriver or a 5/16″ nut driver or socket. Once installed, by tightening the stainless steel bands to 60″ lbs. torque, you are assured of a leak-proof, chemical resistant connection that is impervious to roots and unaffected by soil conditions. Each coupling is identified by part number, size and the names of the materials they connect.

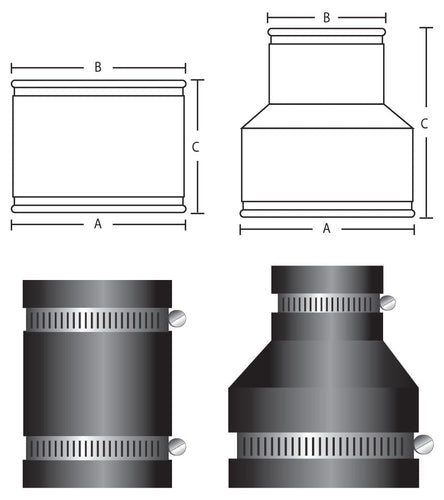

Sales # Pipe Size IN MM IN MM IN MM
PCX56-43 4″ x 3″ 4.45 113 3.45 88 3.95 100
PCX56-150/125 1-1/2″ x 1-1/4″ 1.95 50 1.70 43 3.40 86
PCX56-22 2″ x 2″ 2.45 62 2.45 62 3.40 86
PCX56-33 3″ x 3″ 3.45 88 3.45 88 3.95 100
PCX56-44 4″ x 4″ 4.45 113 4.45 113 4.125 105
PCX56-215 2″ x 1-1/2″ 2.45 62 1.95 50 3.40 86
PCX56-150 1-1/2″ x 1-1/2″ 1.95 50 1.95 50 3.40 86
PCX56-32 3″ x 2″ 3.45 88 2.45 62 3.95 100
